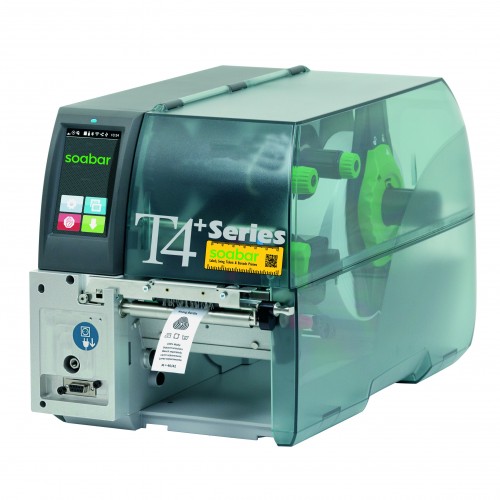

T4 + Series Printer

The Soabar T4Plus Series Thermal Label Printer is a thermal transfer printer for single-sided printing of textile materials.

t4-series-pic

The additionally installed drive roller after the printhead enables the textile material to be reliably separated from the transfer ribbon.

With the adapted print speed of 30–125 mm/s together with Soabar consumables, the T4m is the perfect solution to printing on textile materials including polyester and nylon satin.

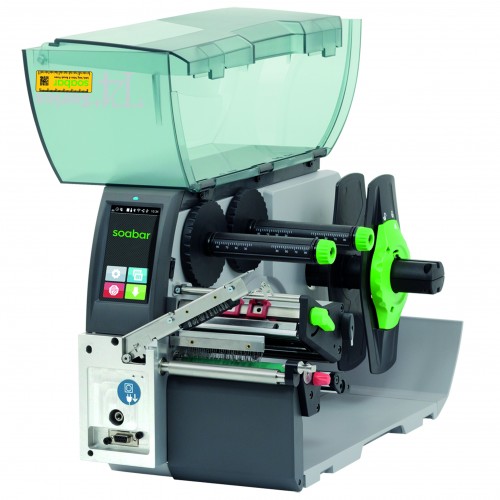

Overview – Initially, the T4m differs to other machines with the centre-aligned feeding of the textile ribbon. The material roll is automatically centre-aligned to the starting position when the material is loaded. The separator additionally installed at the T4m (drive roller, respectively transport roller) separates the textile material behind the print head from the transfer ribbon. This avoids the joining of ribbon and textile materials. As an option, the roller may easily be turned upwards for material loading. Labels to be printed may have a width of 10 to 110 mm.

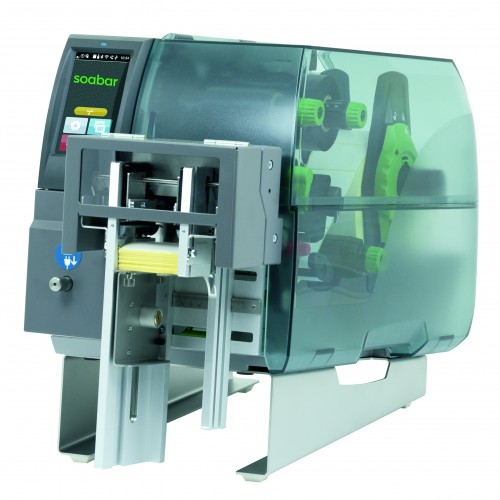

Accessories – An extensive range of accessories make the printers versatile in their applications. You are able to cut using the CU4 cutter, cut and stacked in a neat pile using the ST4/m cutter stacker or the material can be rolled up completely uncut using the S11 external rewind. Two anti static brushes ensure a clear and trouble-free separation of the material without any out-of-control movement of the textile labels after the cutting process. View the accessories available here.

Additional information – The powerful label printers are fitted with a 64 MB RAM memory and a high-speed processor to ensure rapid data processing. The big display has a menu navigation that can be switched to 31 different languages.

The user has all current interfaces available like RS 232C, USB 2.0 High-Speed Slave and Ethernet 10/100 Base T. The printers have as standard two USB Master ports for keyboard, scanner or external control panel as well as a W-LAN card slot available.

The built-in web server enables changes of the printers settings via http access both within the internal network and web. This makes it possible to view comprehensive details about the printer settings via browser.

The T4Plus is supplied with Windows driver and label software including wash care symbols
